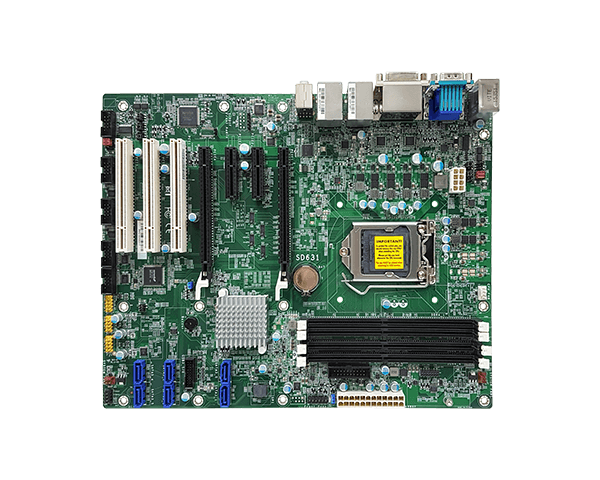

SD631-C236
- 6th/7th Gen Intel® Core™ with Intel® C236
- Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.0, 8 USB 2.0
- Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 3 PCI, 1 LPC
- 3 independent displays: VGA + DVI-I (DVI-D signal) + HDMI
- 4 DDR4 ECC DIMM up to 64GB
- 15-Year CPU Life Cycle Support Until Q4' 29 (Based on Intel IOTG Roadmap)
페이지 정보
작성자 (주)메인테크 작성일19-05-16 10:44 조회713회첨부파일

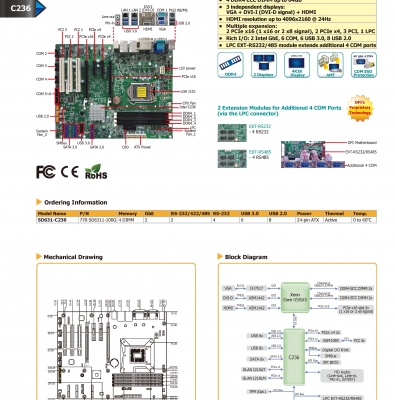

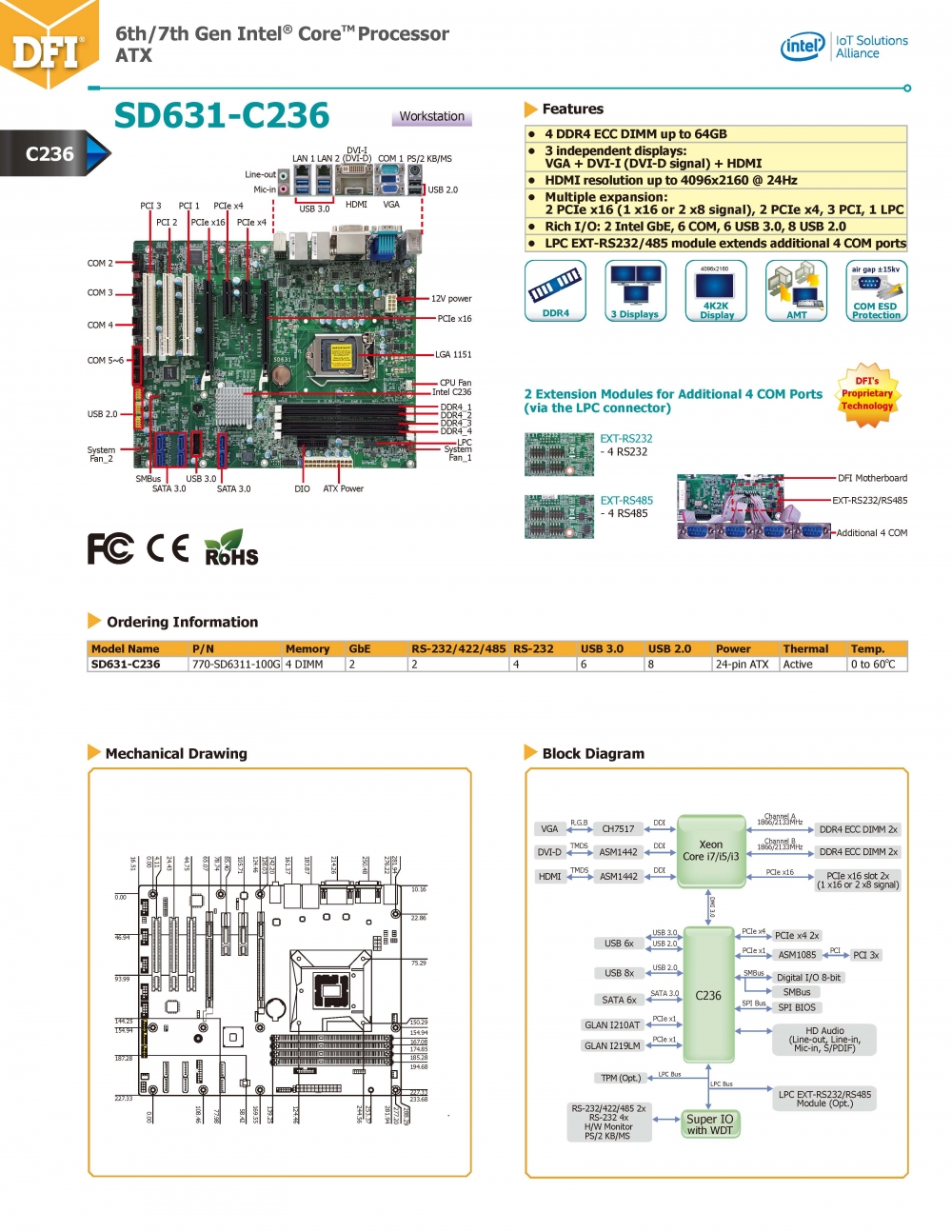

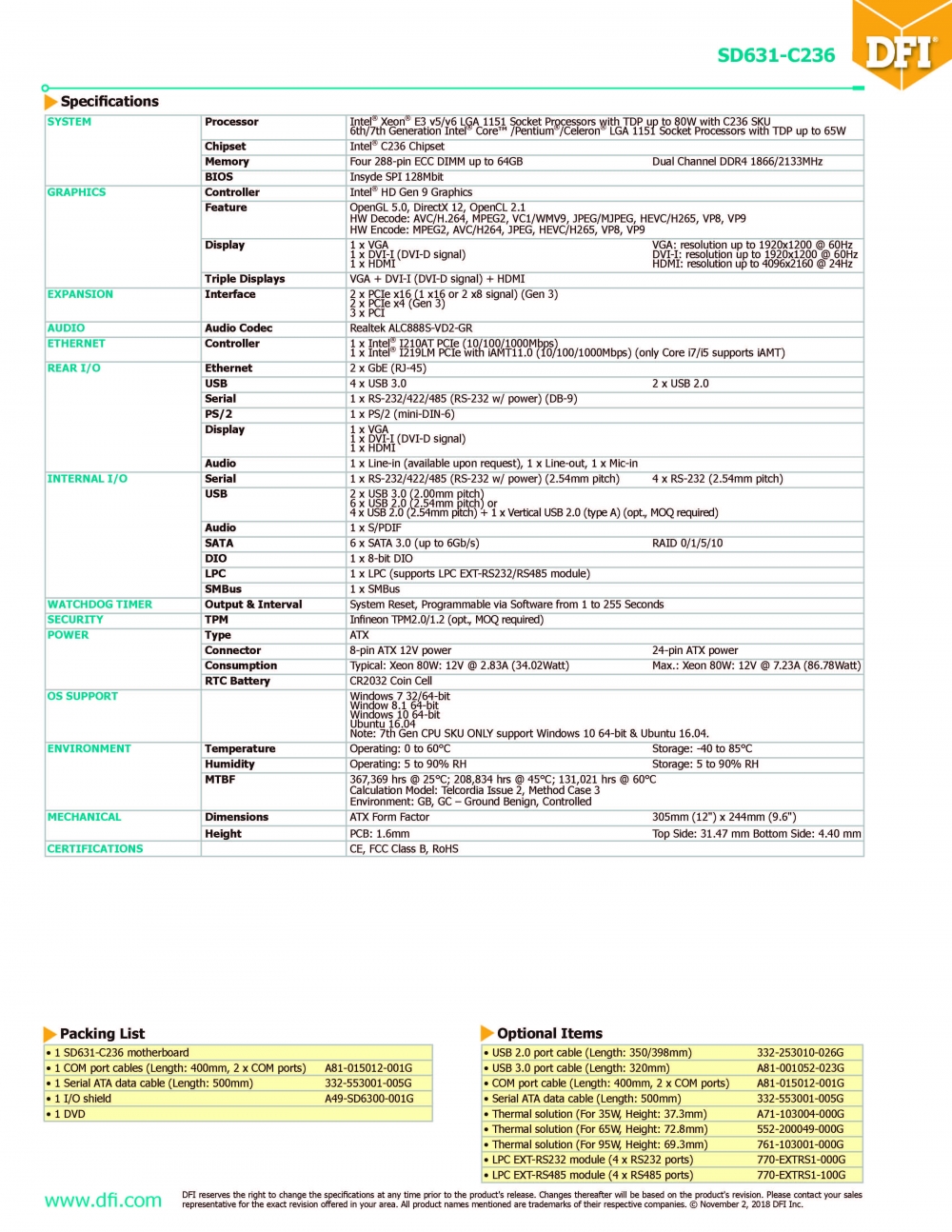

- DFI-SD631-C236-ATX-DataSheet.pdf (1.5M) 45회 다운로드 DATE : 2019-05-16 10:44:15
