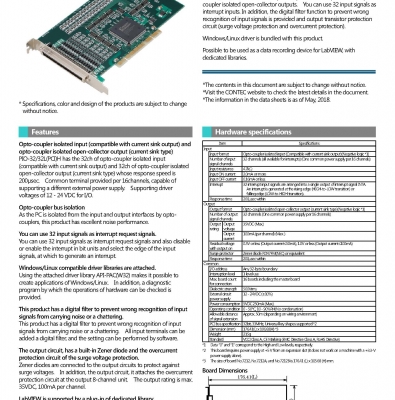

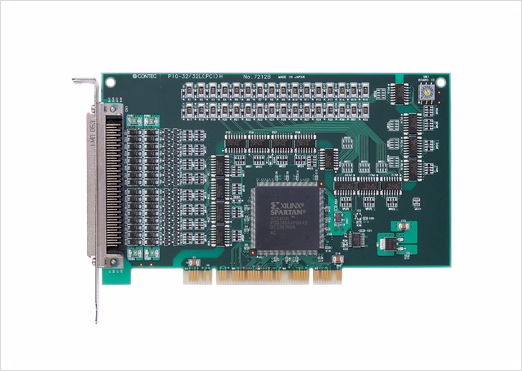

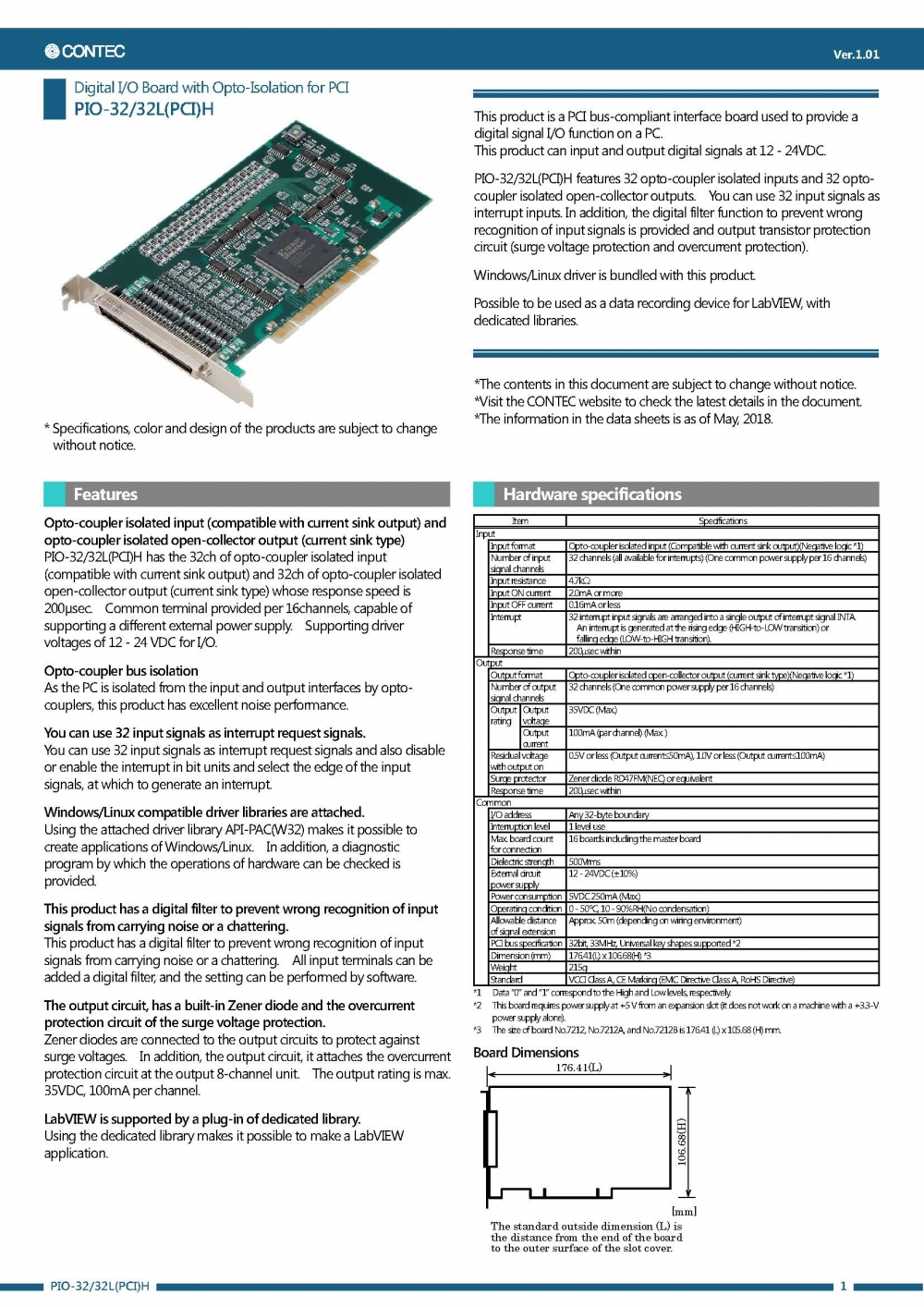

PIO-32/32L(PCI)H
- The input of a maximum of 32 points and the output of a maximum of 32 points can be performed on this one board. Because of the common composition of a 16-point unit, each common line can respond to a different external power supply
- Since the PCI bus (personal computer) and the input/output interface are isolated by the photo-coupler, it excels in noise-protection nature
- It can interrupt and 32 points of an input signal can be used as an input. Moreover, the edge of the input signal can also generates interruption
- It has the digital filter function for preventing the incorrect input by the noise or the chatering

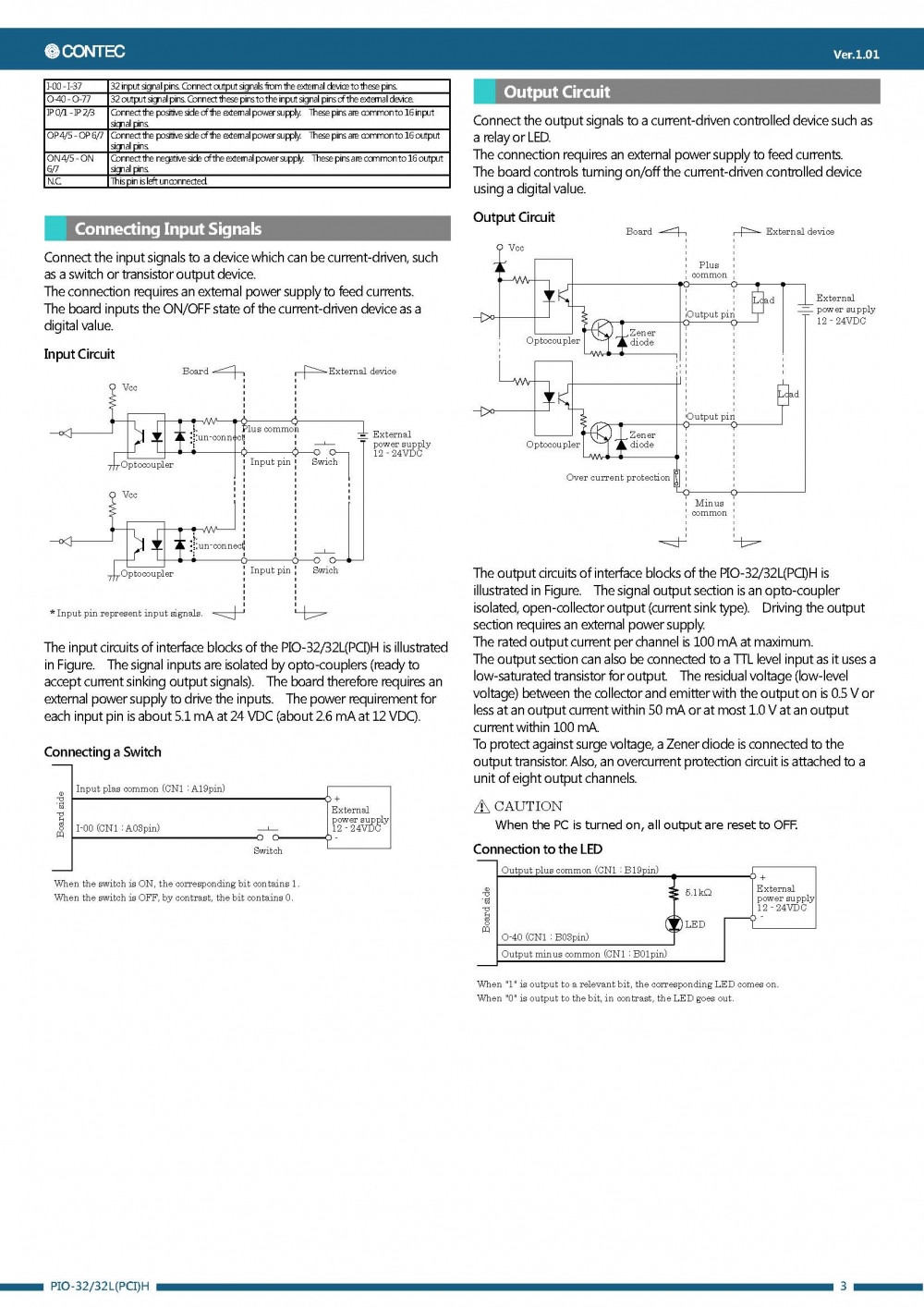

- The rating of an output signal is a maximum of 35 VDC and 100mA per point. Zener diode is connected to an output transistor for protection from surge voltage. Moreover, the over-current protection element is attached per eight output transistors
페이지 정보
작성자 (주)메인테크 작성일19-05-23 14:29 조회821회첨부파일
-
Datasheet_PIO-3232LPCIH.pdf (319.4K)
48회 다운로드
DATE : 2019-05-23 14:29:39
관련링크
본문
제품상세정보
