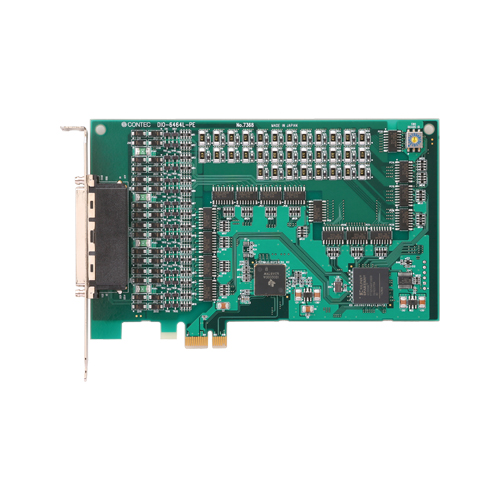

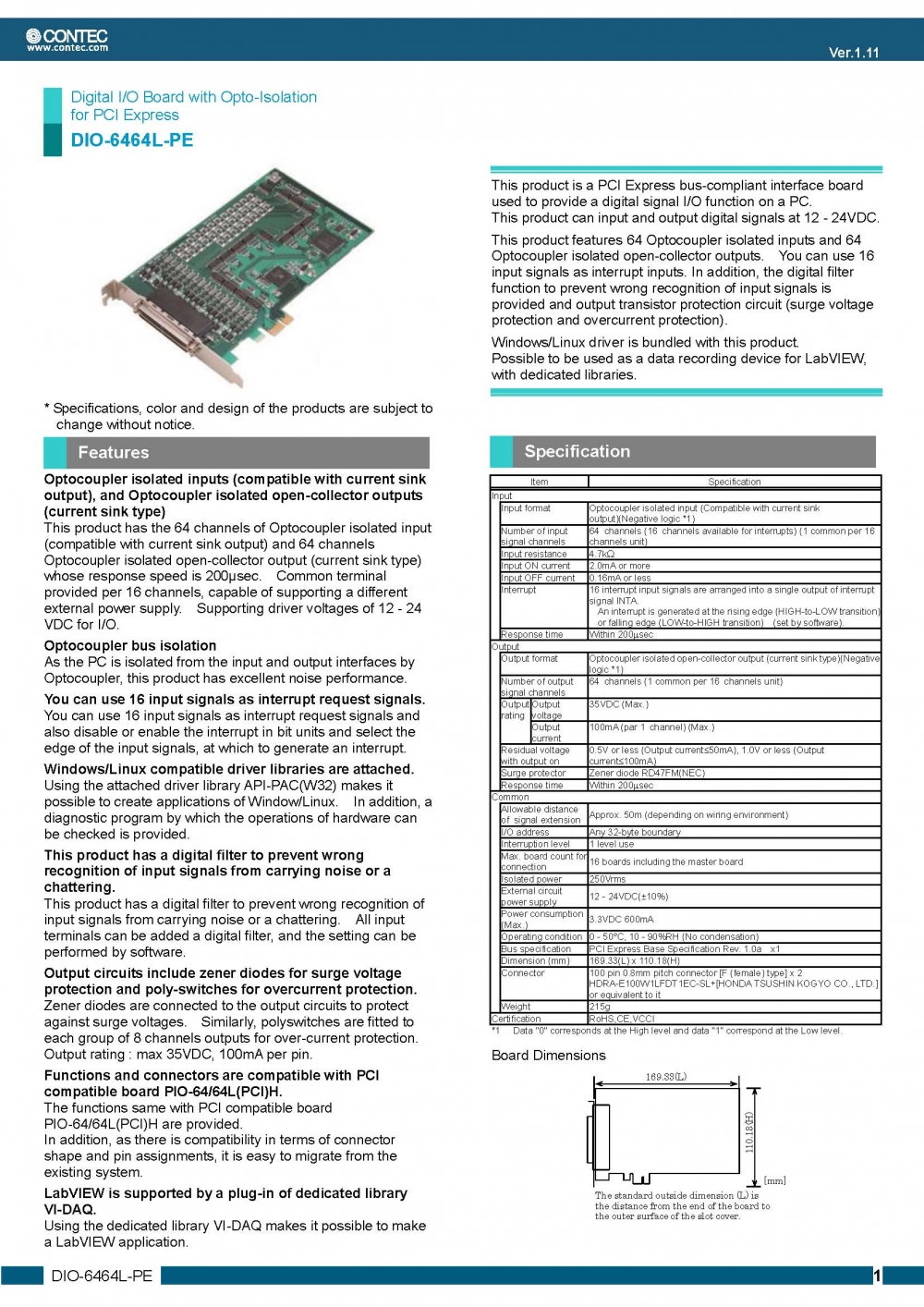

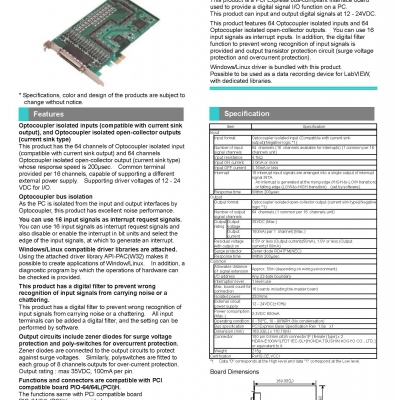

DIO-6464L-PE

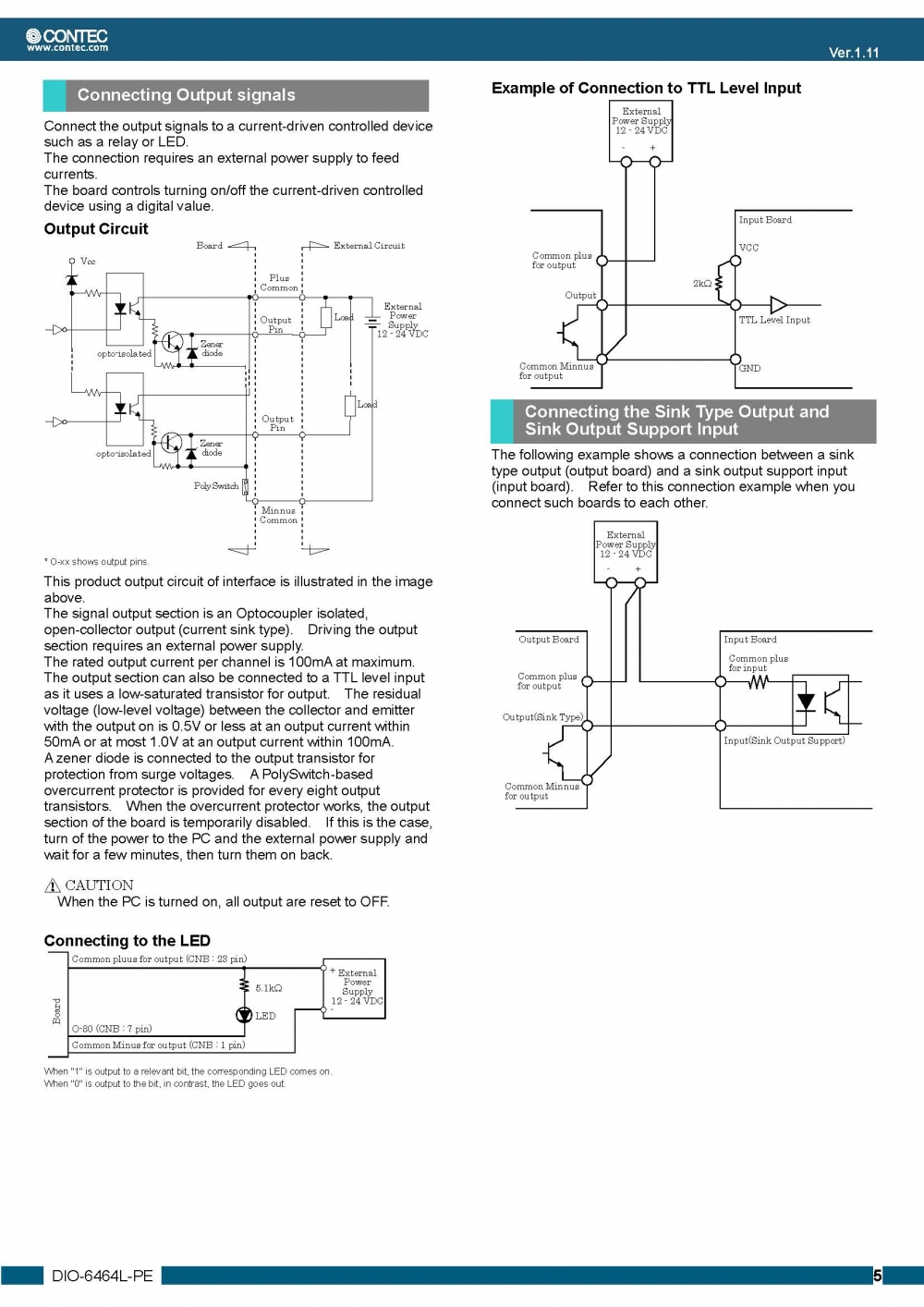

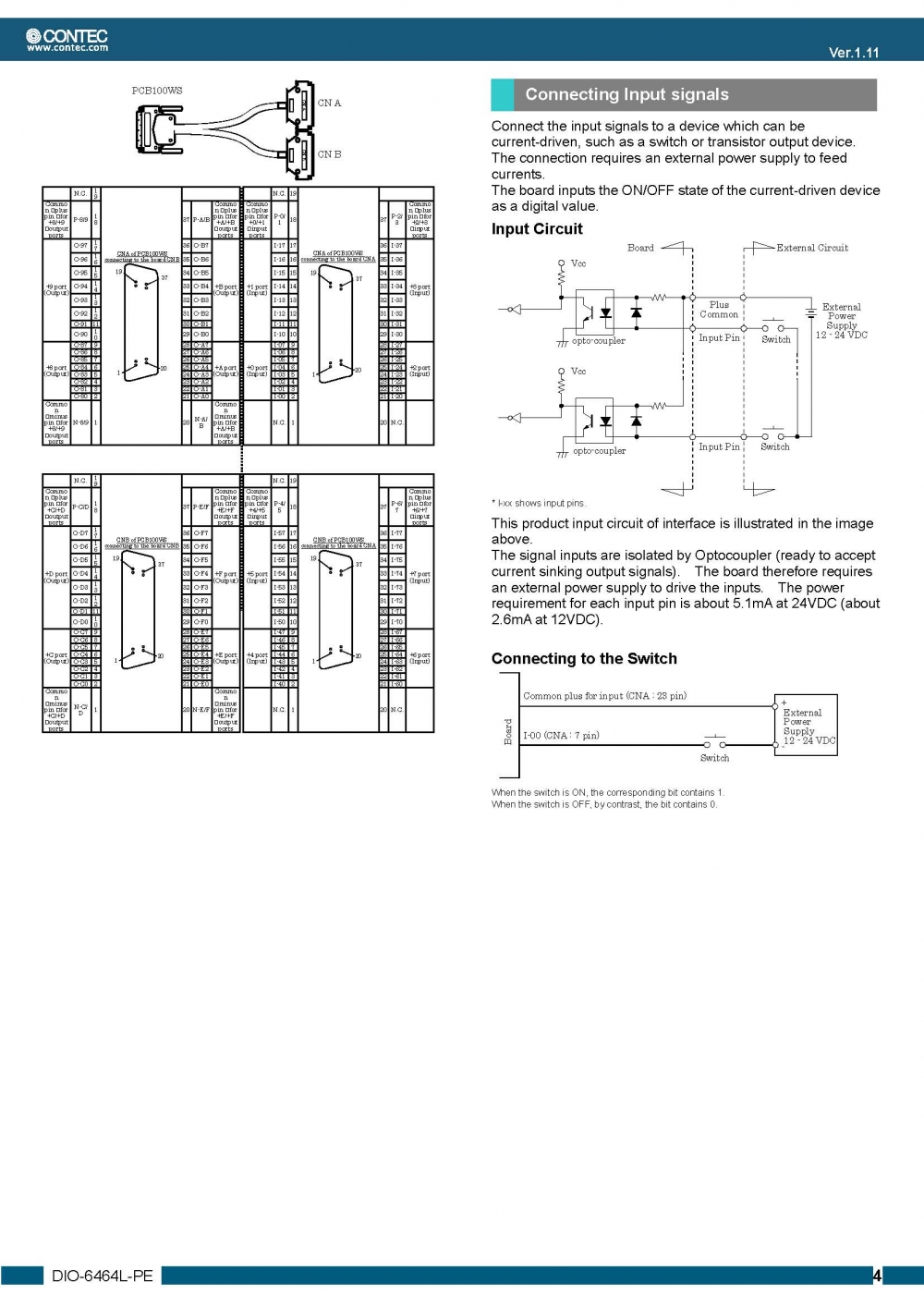

- Optocoupler isolated inputs (compatible with current sink output), and Optocoupler isolated open-collector outputs (current sink type)
- Optocoupler bus isolation
- You can use 16 input signals as interrupt request signals

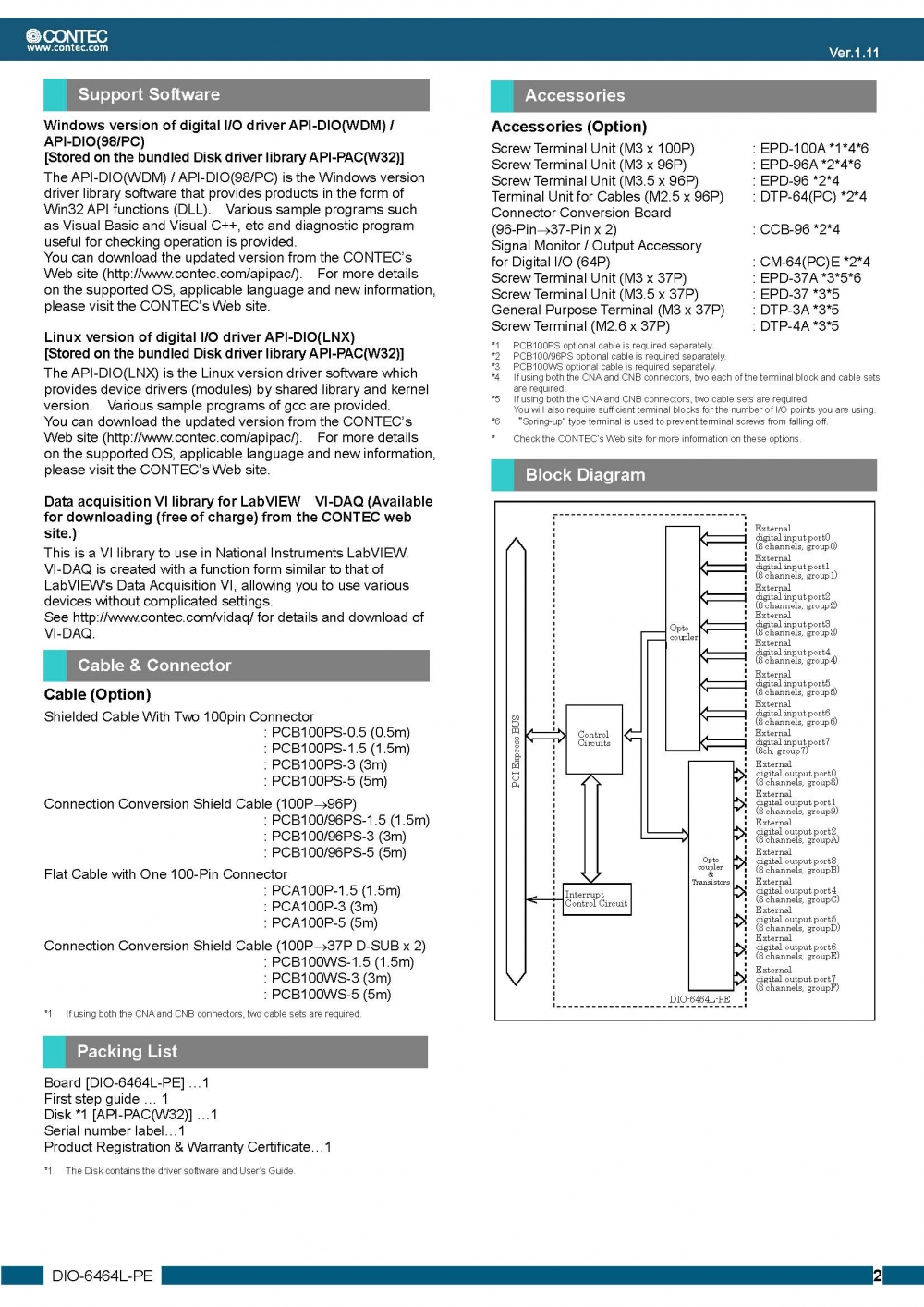

- Windows/Linux compatible driver libraries are attached
- Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection

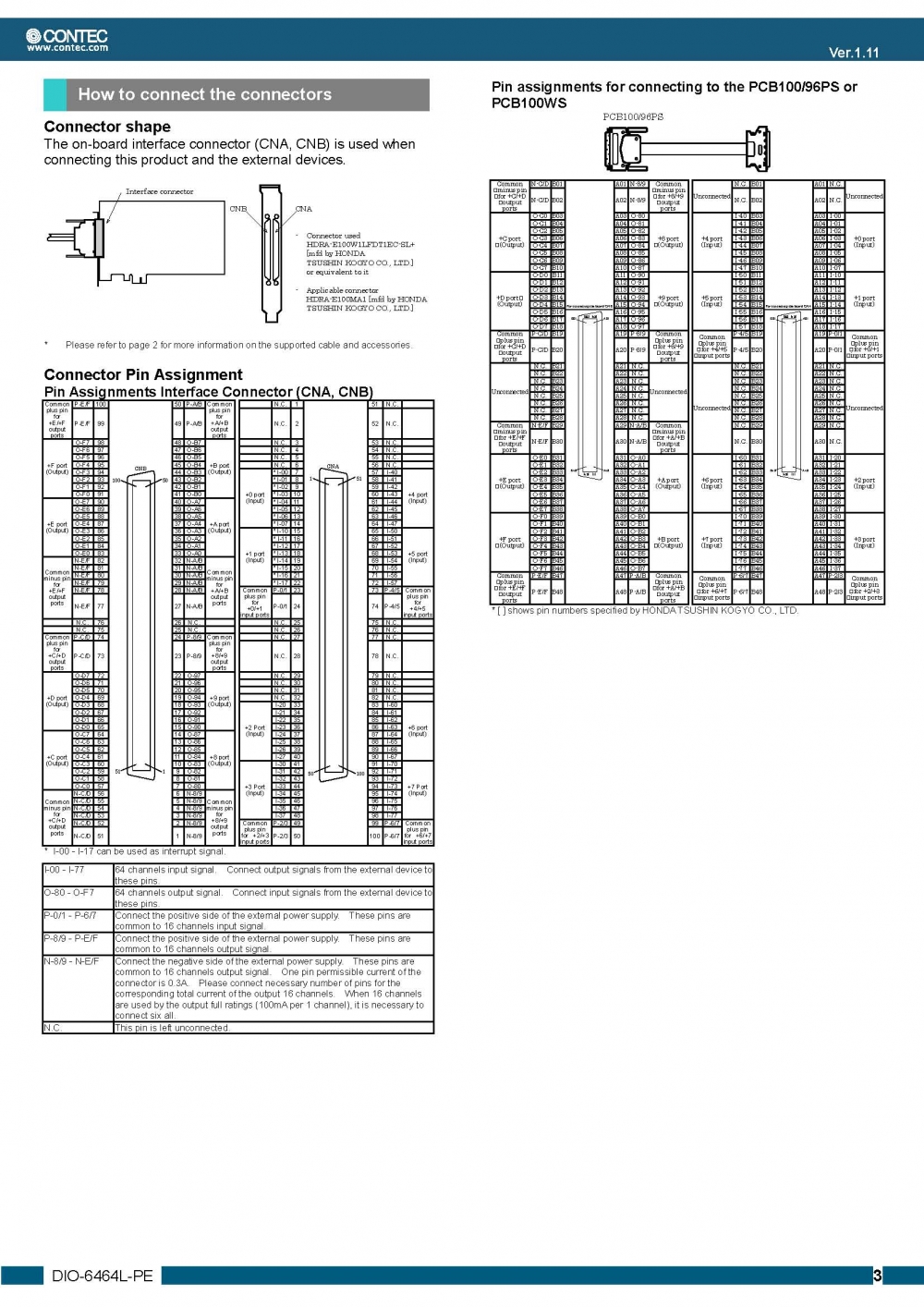

- Functions and connectors are compatible with PCI compatible board PIO-64/64L(PCI)H
페이지 정보
작성자 (주)메인테크 작성일19-05-23 16:03 조회840회첨부파일
-
Datasheet_DIO-6464L-PE.pdf (738.9K)
48회 다운로드
DATE : 2019-05-23 16:03:08
관련링크
본문
제품상세정보
