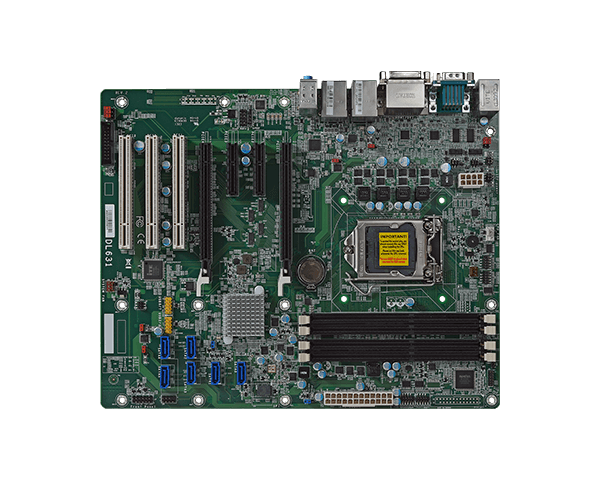

DL631-C226
- 4th Gen Intel® Xeon®/Core™, Intel® C226 Chipset
- Dual channel DDR3 1600MHz DIMM up to 32GB
- 1 HDMI, 1 DVI-I
- Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4 (1 x4 and 1 x1 signal), 3 PCI, 6 SATA 3.0
- Rich I/O: 2 Intel GbE, 10 USB, 6 COM
- 7-Year CPU Life Cycle Support Until Q2' 19 (Based on Intel IOTG Roadmap)
페이지 정보
작성자 (주)메인테크 작성일23-08-16 16:29 조회50회첨부파일
-

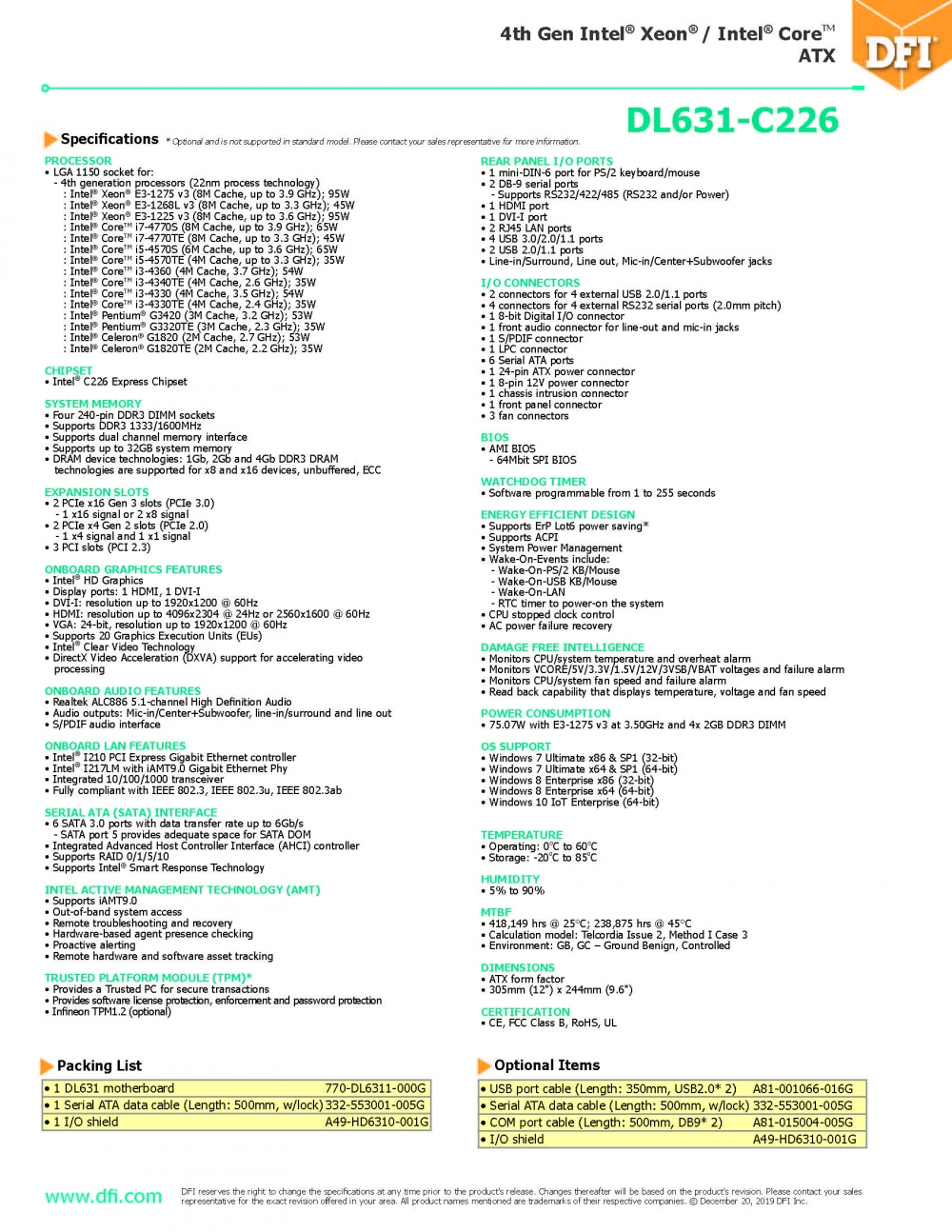

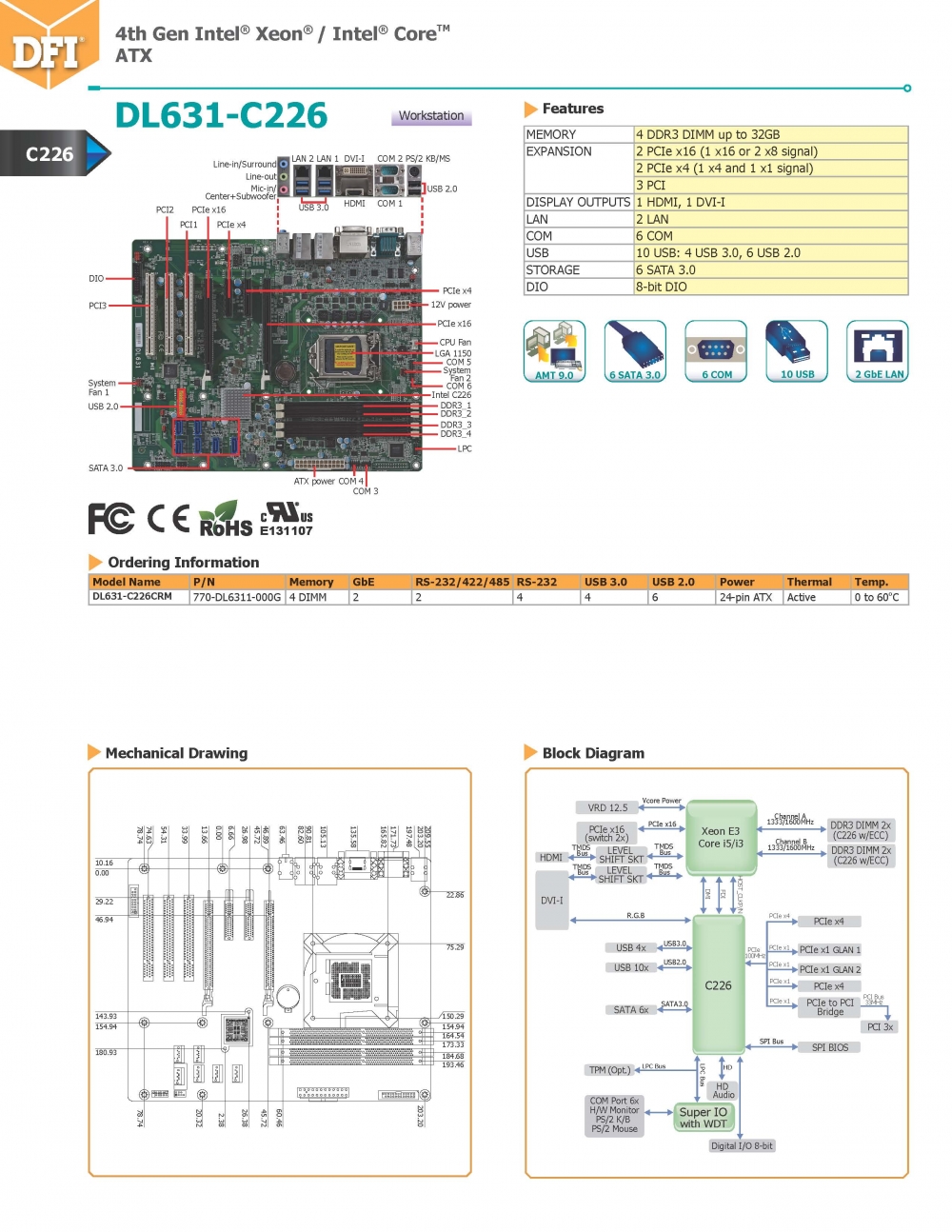

DFI-DL631-C226-ATX-Datasheet.pdf (765.8K)
2회 다운로드
DATE : 2023-08-16 16:29:43
관련링크
본문
제품상세정보
